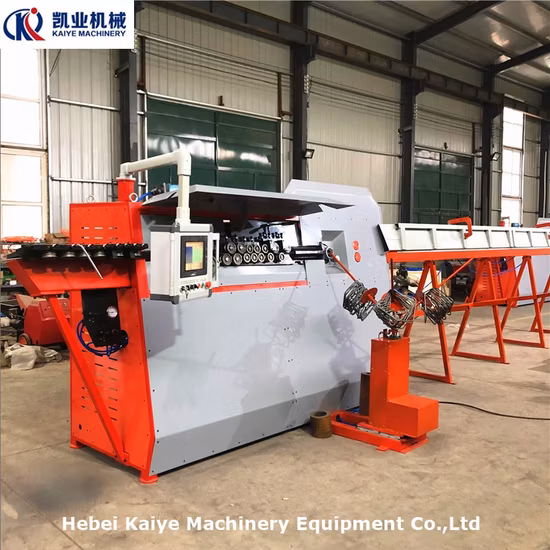

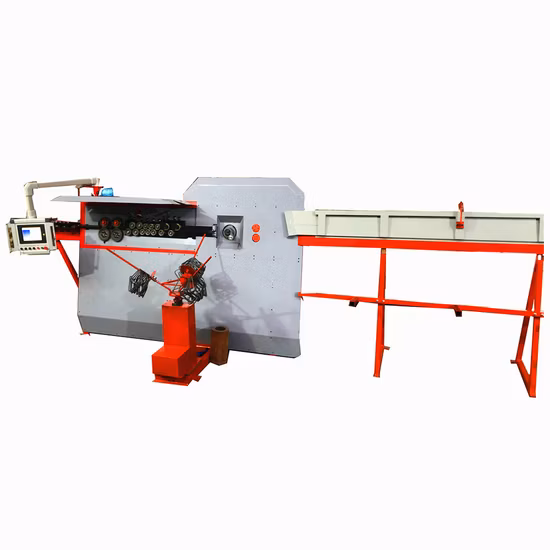

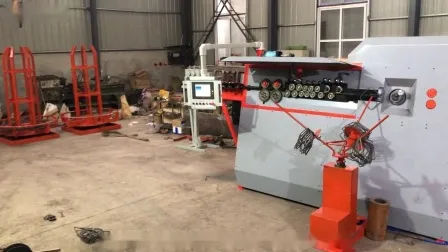

High Quality Hydraulic CNC Wire Stirrup Rebar Bending Machine

Basic Info

Model NO.	KY-RBM-5
Type	Cnc Bending Machine
Transport Package	Plastic Package with Steel Rope to Fix
Specification	12500*1050*2015 mm
Trademark	KaiYe
Origin	Hebei, China
HS Code	8462219000
Production Capacity	20 Set/Month

Product Description

»»High quality hydraulic cnc wire stirrup rebar bending machine

♦♦Automatic stirrup bending machine with CNC servo control system, can be done automatically reinforced straightening, cut to length, bending hoop, cutting and other process, the maximum diameter of 12mm steel wire can be bended.

♦♦The machine can continuous produce any planar shape products, widely used in construction, a large steel plant and other fields.

♦♦We are always improving our machines with the latest technology to produce more perfect products , and to meet the actual needs of steel processing better.

Features »»

1)Automatic wire feeding system ( CNC ).

2)The intelligent fault identification alarm system maintenance more convenient.

3)Touch-screen , easy to operate, and more fast.

4)High power feeding Servo Motor's To Ensure Straightening, Bending & Cutting Accuracy.

5)larg storage Capacity can save 500 Processing Geometric Designs, High Degree Automation.

6)Automatically accomplish the functions of rebar's feeding,straightening,bending and cutting etc.

7)Different shapes can be processed continuously without stop, furthermore no need to stop the processing while adjusting the bending angle.

Product parameters»»

Model	KY-RBM-3	KY-RBM-4	KY-RBM-5
Single wire diameter	6-12mm	6-10mm	6-12mm
Double wire diameter	6-10mm	6-8mm	6-10mm
Angle of bending	+ 360°	+ 180°	+ 360°
Wire feeding speed	80m/min	50m/min	80m/min
Bending speed	1000°/sec	800°/sec	1000°/sec
Power transmission	Synchronous belt (Double)	Reducer	Synchronous belt (Double)
Feeding wire motor	Synchronous servo motor 18 kw	Asynchronous servo motor 11 kw	Synchronous servo motor 18 kw
Bending motor	Synchronous servo motor 7.5 kw	Asynchronous servo motor 5.5 kw	Synchronous servo motor 7.5 kw
Cutting motor	Asynchronous motor 4.0 kw	Asynchronous motor 4.0 kw	Asynchronous motor 4.0 kw
Rebar hook support rack length	NO	9 meter	9 meter
Air compressor	YES	NO	YES
Accuracy of length	±1mm	±1mm	±1mm
Angular precision	±1°	±1°	±1°
Work temperature	-5ºC-40ºC	-5ºC-40ºC	-5ºC-40ºC
Machine weight	1350kg	1500kg	1800kg
Dimensions (mm)	3500*1050*2015	11800*1000*1500	12500*1050*2015

Detailed Images»»

---------------------

⇒(1) Straightening system
Multi-roller straightening mechanism , no damage to steel bars, better straightening effect.

---------------------

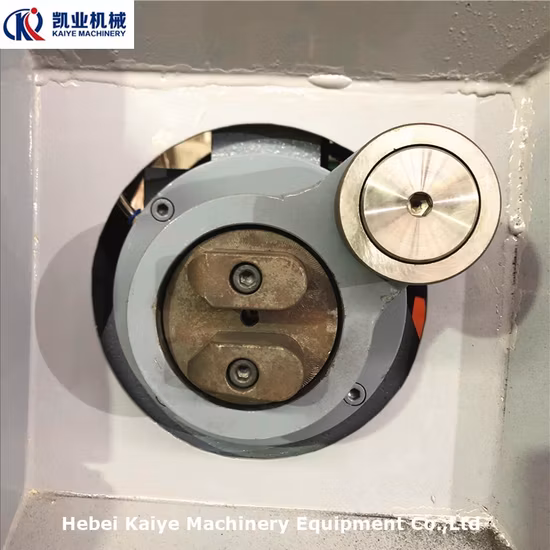

⇒(2) Bending system

Pneumatic expansion and durability. The angle can be adjusted arbitrarily, and the stirrups of various shapes and sizes can be produced.

pneumatic telescopic bending system,hydraulic ,mechanical cutting can be sustomized.
---------------------

⇒(3)Strong motor

strong power to keep work efficiency ,easy to use , effortless.

the motor can ensure 300000 times without malfunction.

---------------------

⇒(4)Detailed wiring

Wiring specifications are fair , the route is clear,and the application is simple.



Product Effects»»

Wide range of applications

reduce labor costs and increse work efficiency

Application: tunnel construction , urban construction, bridge construction, water conservancy projects , rural housing construstion, railway engineering ,etc. A multi-purpose machine can process a variety of shapes and sizes , energy-efficient and durable.

Easy to use

This machine adopts fully automatic microcomputer to control the servo drive motor, which has the advantages of high speed , high strength , accurate counting and low failure. From the steel bar feeding ,quick straightening , bending forming , counting ,cutting a variety of process combinations , can directly produce a variety of sizes and sizes of stirrups.

Our service»»

(1)Pre-sale service★★★★★ 1. Select equipment model.2. Design and manufacture products according to clients' special requirement. (2)Services during the sale★★★★★ 1. Pre-check and accept products ahead of delivery.2. Help clients to draft solving plans. (3)After-sale service★★★★★ 1. We will reply you for your inquiry in 24 hours.2. After you get the products, we'll send technicians to your factory. Then they will guide your workers to install and debug the machine patiently untill the machine can work normally. Since our factory established, our after-sale team had been to many contries and received customers' critical acclaim.

Packaging & Shipping»»

Steel wire rod bender Packaging:
One set Automatic Stirrup bender machine1, could packed in iron frame, than cover by tarpaulin2, could packed in wooden case,each set in an exported standard wooden case.

Delivery time: Within 20 days after receiving deposit.

Company Profile»»

Hebei Kaiye Machinery Equipment is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!

FAQ»»

Q: Where is your factory located?

A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How long is the warranty?

A: Two years warranty and after sales service for whole life.

Q: Can you make the english language or other language of the CNC control system for the customers?

A: Yes. Of course. We can make different language for the cnc control. Just tell us which language you need.

Q: How to consult the quotation of the stirrup bender?

A: Please tell me:what's the diameter of the round bar?what's the diameter of the ribbed bar? Is there any special need about the shape?

Q: how to pay for the product?

A: 100% irrevocable L/C at sight,

T/T 30% in advane and the rest 70% before shipment ,

Alibaba's on-line trade assurance order,

Western union is available.
